Backplates for Traffic Signals

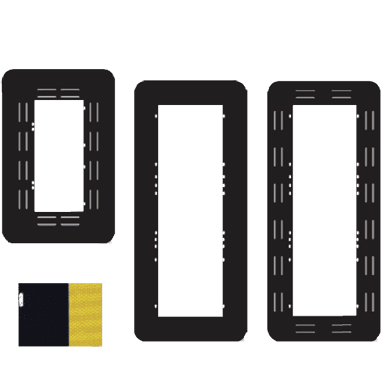

Oriux offers a variety of one-piece aluminum signal backplates as optional add-ons for all its vehicle signals and a variety of multi-piece backplates in 1/4" ABS.
Features
Heavier gauge aluminum is available upon request
Z-Crate Visor: 100%
“Vision” Z-Crate, Visor/Door Combo
Dustproof and weather-proof when properly mounted
Door Frame Hardware
TS&L guarantee
At TS&L, we take pride in our commitment to delivering prompt and reliable service. That’s why we guarantee to be onsite within 24 hours of your request, ensuring your needs are met quickly and efficiently. Whether it’s an emergency or routine maintenance, our team is available 24/7, 365 days a year.
No matter the time, day, or circumstance, you can trust TS&L to provide the professional support you need, when you need it most. Your satisfaction and the continued performance of your lighting and transportation solutions are our top priorities.
No matter the time, day, or circumstance, you can trust TS&L to provide the professional support you need, when you need it most. Your satisfaction and the continued performance of your lighting and transportation solutions are our top priorities.
Technical Data Sheet
Backplates

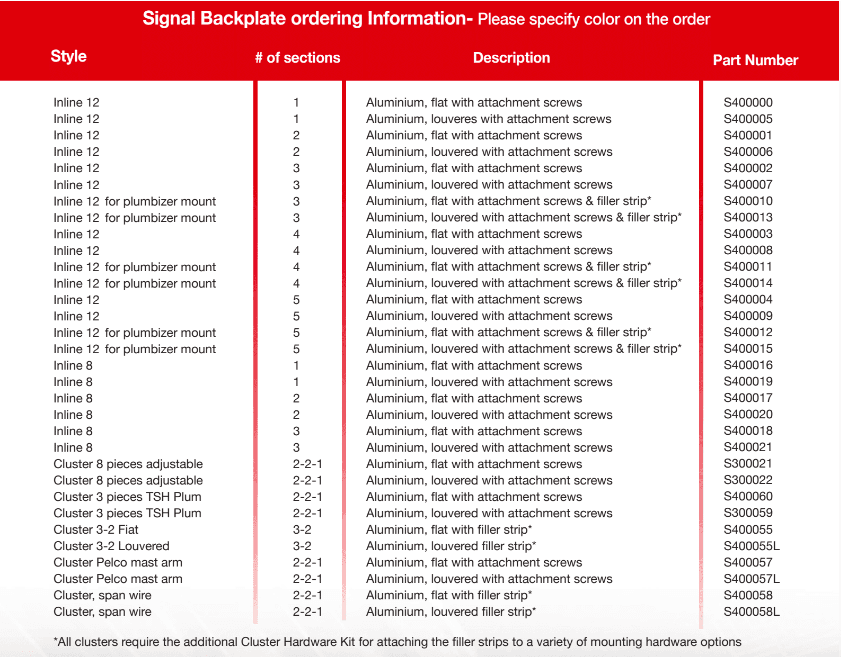

Oriux backplates are fabricated from 0.06" (1.5mm) sheet aluminum which is electro-statically powder-coated in your choice of color. You can specify the color of powder-coating of each backplate by inserting the appropriate color suffix to the end of the part number when ordering.
Available colors include:
Flat back (Standard) - Specify ‘FBK’
Federal Yellow - Specify ‘FYL’
Olive Green - Specify ‘OGR’
Custom Color (Paint chip required) - Specify ‘CST
Borders are 5 inches wide (127mm) on the backplates for 12 signals, and 8 inches wide (203mm) on the backplates for the 8” signals.
Heavier gauge aluminum is available upon request. Stainless steel attaching screws and washers are included with each backplate.
Two inch (51mm) or three inch (76mm) wide reflective tape is also available as an optional item around the edges of flat backplates.In addition, backplate assemblies are also available to custom-fit all Oriux 2-2-1 and 3-2 signal clusters in 12 inch signal sizes. Options are also available for any of the mounting methods being used for both inline and clustered signals, including standard, Plumbizer, mast arm clusters, and span wire clusters. Plumbizer, mast arm and span wire backplate assemblies include extra filler strips to cover gaps in the signal assembly caused by the mounting hardware. These filler strips require additional mounting screws and associated hardware, available as a cluster hardware kit.
Backplates Multi Pieces
Some backplates will fit these signal brands such as Oriux, McCain, LFE, Old Eagle Round, Econolite, and Durasig signals depending on their dimensions.
Oriux backplates are fabricated from ABS 1/4" in black color.
Borders are 5 inches wide (127mm) on the backplates for 12" signals, and 8 inches wide (203mm) on the backplates for the 8” signals.
Stainless steel attaching screws and washers are included with each backplate.
2" (51mm) or 3" (76mm) wide reflective tape is also available as an optional item around the edges of the flat backplates.
In addition, backplate assemblies are also available to custom-fit 2-2-1 signal clusters in 12" signal sizes. Options are also available for any of the mounting methods being used for both in-line and clustered signals, including mast arm clusters, and span wire clusters. Mast arm and span wire backplate assemblies include extra filler strips to cover gaps in the signal assembly caused by the mounting hardware. These filler strips require additional mounting screws and associated hardware, available as a cluster hardware kit.
Oriux backplates are fabricated from 0.06" (1.5mm) sheet aluminum which is electro-statically powder-coated in your choice of color. You can specify the color of powder-coating of each backplate by inserting the appropriate color suffix to the end of the part number when ordering.
Available colors include:
Flat back (Standard) - Specify ‘FBK’
Federal Yellow - Specify ‘FYL’
Olive Green - Specify ‘OGR’
Custom Color (Paint chip required) - Specify ‘CST
Borders are 5 inches wide (127mm) on the backplates for 12 signals, and 8 inches wide (203mm) on the backplates for the 8” signals.
Heavier gauge aluminum is available upon request. Stainless steel attaching screws and washers are included with each backplate.
Two inch (51mm) or three inch (76mm) wide reflective tape is also available as an optional item around the edges of flat backplates.In addition, backplate assemblies are also available to custom-fit all Oriux 2-2-1 and 3-2 signal clusters in 12 inch signal sizes. Options are also available for any of the mounting methods being used for both inline and clustered signals, including standard, Plumbizer, mast arm clusters, and span wire clusters. Plumbizer, mast arm and span wire backplate assemblies include extra filler strips to cover gaps in the signal assembly caused by the mounting hardware. These filler strips require additional mounting screws and associated hardware, available as a cluster hardware kit.
Backplates Multi Pieces
Some backplates will fit these signal brands such as Oriux, McCain, LFE, Old Eagle Round, Econolite, and Durasig signals depending on their dimensions.
Oriux backplates are fabricated from ABS 1/4" in black color.
Borders are 5 inches wide (127mm) on the backplates for 12" signals, and 8 inches wide (203mm) on the backplates for the 8” signals.
Stainless steel attaching screws and washers are included with each backplate.
2" (51mm) or 3" (76mm) wide reflective tape is also available as an optional item around the edges of the flat backplates.
In addition, backplate assemblies are also available to custom-fit 2-2-1 signal clusters in 12" signal sizes. Options are also available for any of the mounting methods being used for both in-line and clustered signals, including mast arm clusters, and span wire clusters. Mast arm and span wire backplate assemblies include extra filler strips to cover gaps in the signal assembly caused by the mounting hardware. These filler strips require additional mounting screws and associated hardware, available as a cluster hardware kit.
Oriux warrants these products against manufacturing defects in materials and workmanship for one year from the date of shipment from the factory. Specific contracts and regional laws may vary or alter these terms.
