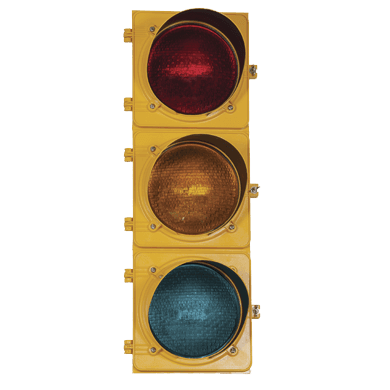

Vehicle Traffic Signals
Unique design and technological advantages make Oriux Traffic Signals “Best in class"
Features
Reflector: Snap-out assembly. Swing out frame
Reinforced plates available
Adaptable to span wire or mast suspension
Exterior hardware in stainless steel available
LED ready or equipped with reflectors
TS&L guarantee
At TS&L, we take pride in our commitment to delivering prompt and reliable service. That’s why we guarantee to be onsite within 24 hours of your request, ensuring your needs are met quickly and efficiently. Whether it’s an emergency or routine maintenance, our team is available 24/7, 365 days a year.
No matter the time, day, or circumstance, you can trust TS&L to provide the professional support you need, when you need it most. Your satisfaction and the continued performance of your lighting and transportation solutions are our top priorities.
No matter the time, day, or circumstance, you can trust TS&L to provide the professional support you need, when you need it most. Your satisfaction and the continued performance of your lighting and transportation solutions are our top priorities.
Technical Data Sheet
Polycarbonate Signals
Material:
Ultraviolet-stabilized polycarbonate resin (minimum thickness: 0.100 inches)
Exterior hardware is made of stainless steel.
Couplers are standard steel-zinc, with a stainless steel option available.
Reflector:
Snap-out assembly with a swing-out frameStandard reflector used for lane control.
Lamp Receptacle:
Pre-wired with 26 color-coded #18 AWG 105°C type TEW leads featuring quick-disconnect terminals
Pre-wired with 26 color-coded #18 AWG 105°C type TEW leads featuring quick-disconnect terminals
Wire Opening Between Sections: Designed to accommodate three cables with a ¾-inch diameter.
Terminal Block:
1-Section: 2-point.
2-Section: 3-point.
3-Section: 5-point.
4-Section: 5-point.
5-Section: Two 5-point blocks.
Signal Alignment:
Integral 72-tooth serrated design, adjustable in 5° steps.
Weight:
8” (200mm) LED-Ready Section: 1.85 lb (0.84 kg).
12” (300mm) LED-Ready Section: 3.15 lb (1.43 kg).
Dimensions:
8” (200mm) Section: 9.75” W x 10” H x 6.16” D.
12” (300mm) Section: 13.5” W x 13.44” H x 6.44” D.
Ultraviolet-stabilized polycarbonate resin (minimum thickness: 0.100 inches)
Exterior hardware is made of stainless steel.
Couplers are standard steel-zinc, with a stainless steel option available.
Reflector:
Snap-out assembly with a swing-out frameStandard reflector used for lane control.
Lamp Receptacle:
Pre-wired with 26 color-coded #18 AWG 105°C type TEW leads featuring quick-disconnect terminals
Pre-wired with 26 color-coded #18 AWG 105°C type TEW leads featuring quick-disconnect terminals
Wire Opening Between Sections: Designed to accommodate three cables with a ¾-inch diameter.
Terminal Block:
1-Section: 2-point.
2-Section: 3-point.
3-Section: 5-point.
4-Section: 5-point.
5-Section: Two 5-point blocks.
Signal Alignment:
Integral 72-tooth serrated design, adjustable in 5° steps.
Weight:
8” (200mm) LED-Ready Section: 1.85 lb (0.84 kg).
12” (300mm) LED-Ready Section: 3.15 lb (1.43 kg).
Dimensions:
8” (200mm) Section: 9.75” W x 10” H x 6.16” D.
12” (300mm) Section: 13.5” W x 13.44” H x 6.44” D.
Aluminum Signals
Material:
Die-cast aluminum alloy housing and door.
Exterior hardware made of stainless steel.
Couplers are standard steel-zinc, with a stainless steel option available.
Finish:
Electrostatically applied powder coat with five-stage iron phosphate treatment.
Reflector:
Snap-out assembly with a swing-out molded frame.
Standard reflector used for lane control.
Lamp Receptacle:
Made of heat-resistant molded phenolic, rotatable through 360°
Pre-wired with 26 color-coded #18 AWG 105°C type TEW leads featuring quick-disconnect terminals.
Wire Opening Between Sections: Designed to accommodate three cables with a ¾-inch diameter.
Terminal Block:
1-Section: 2-point.
2-Section: 3-point.
3-Section: 5-point.
4-Section: One 5-point and one 2-point.
5-Section: One 5-point and one 3-point.
Signal Alignment:
Integral 72-tooth serrated design, adjustable in 5° steps.
Weight:
8” (200mm) LED-Ready Section: 4.2 lb (1.9 kg).
12” (300mm) LED-Ready Section: 5.5 lb (2.5 kg).
Dimensions:
8” (200mm) Section: 9.75” W x 10” H x 6.16” D.
12” (300mm) Section: 13.5” W x 13.44” H x 6.44” D.
Die-cast aluminum alloy housing and door.
Exterior hardware made of stainless steel.
Couplers are standard steel-zinc, with a stainless steel option available.
Finish:
Electrostatically applied powder coat with five-stage iron phosphate treatment.
Reflector:
Snap-out assembly with a swing-out molded frame.
Standard reflector used for lane control.
Lamp Receptacle:
Made of heat-resistant molded phenolic, rotatable through 360°
Pre-wired with 26 color-coded #18 AWG 105°C type TEW leads featuring quick-disconnect terminals.
Wire Opening Between Sections: Designed to accommodate three cables with a ¾-inch diameter.
Terminal Block:
1-Section: 2-point.
2-Section: 3-point.
3-Section: 5-point.
4-Section: One 5-point and one 2-point.
5-Section: One 5-point and one 3-point.
Signal Alignment:
Integral 72-tooth serrated design, adjustable in 5° steps.
Weight:
8” (200mm) LED-Ready Section: 4.2 lb (1.9 kg).
12” (300mm) LED-Ready Section: 5.5 lb (2.5 kg).
Dimensions:
8” (200mm) Section: 9.75” W x 10” H x 6.16” D.
12” (300mm) Section: 13.5” W x 13.44” H x 6.44” D.
Unaffected by scratches
Unaffected by scratches
Impregnated color means that they never need painting
Impervious to corrosive atmospheres
One-piece doors, grooved.
Simple alignment and positive locking in 5 degree steps
Ribbed for structural stability
Reinforced plates available
Adaptable to span wire or mast suspension
Universal vertical and horizontal ready mounting arrangement
Exterior hardware in stainless steel available
LED ready or equipped with reflectors
Weather proof and dust tight one piece doors plus gasket
Fifty percent lighter than aluminum
Aluminum Signals
Equipped with exterior stainless steel hardware
Doors and lens gaskets make the signal weather-proof and dust-tight
Integral visor rims prevent leakage
Available reflectors in Alzak ®
The lamp receptacle can be rotated 360 degrees for filament alignment
Integral locking rings included
Adaptable for span wire, mast arm suspension, side pole or post top mounting"
Unaffected by scratches
Impregnated color means that they never need painting
Impervious to corrosive atmospheres
One-piece doors, grooved.
Simple alignment and positive locking in 5 degree steps
Ribbed for structural stability
Reinforced plates available
Adaptable to span wire or mast suspension
Universal vertical and horizontal ready mounting arrangement
Exterior hardware in stainless steel available
LED ready or equipped with reflectors
Weather proof and dust tight one piece doors plus gasket
Fifty percent lighter than aluminum
Aluminum Signals
Equipped with exterior stainless steel hardware
Doors and lens gaskets make the signal weather-proof and dust-tight
Integral visor rims prevent leakage
Available reflectors in Alzak ®
The lamp receptacle can be rotated 360 degrees for filament alignment
Integral locking rings included
Adaptable for span wire, mast arm suspension, side pole or post top mounting"
Oriux warrants* these products against manufacturing defects in materials and workmanship for one year from date of shipment from the Oriux factory. Specific contracts and regional laws may vary or alter these terms. Oriux products are protected by one or more U.S. and international patents.
* For specific warranty information, contact your local Oriux product representative.
Poly and Aluminum signals are also available with LED ready.
Weights do not include hardware modifications. Door only, no visors.
* For specific warranty information, contact your local Oriux product representative.
Poly and Aluminum signals are also available with LED ready.
Weights do not include hardware modifications. Door only, no visors.
